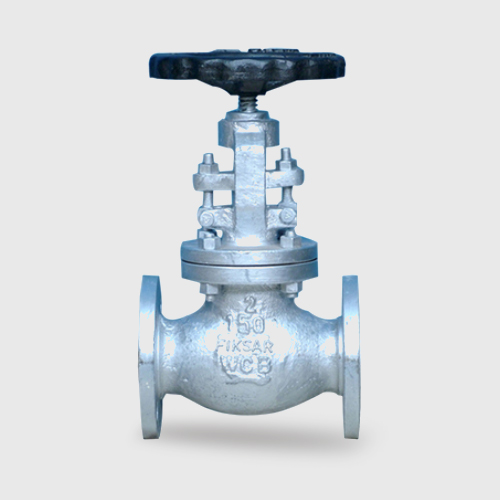

GLOBE VALVE,FLANGED END, 150#

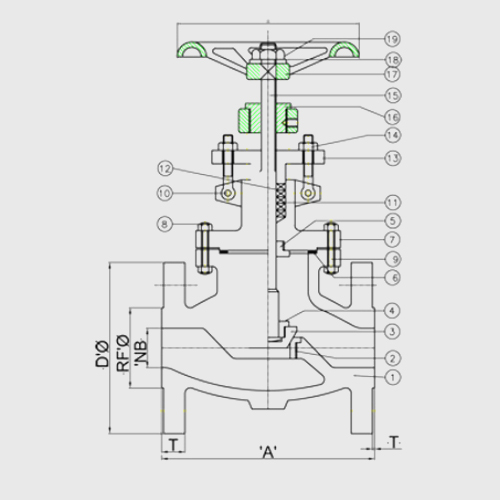

SR. NO.	PART NAME	QTY	MATERIAL
1	BODY	1	ASTM A 216 GR. WCB / ASTM A351 GR.CF8 / CF8M / CF3M
2	SEAT RING	1	SS410 / SS304 / SS316 / SS316L
3	DISC	1	SS410 / SS304 / SS316 / SS316L
4	SPINDLE NUT	1	SS410 / SS304 / SS316 / SS316L
5	SPINDLE	1	SS AISI 410 / SS304 / SS316 / SS316L
6	GASKET	1	S.S. 304 / S316L SPIRAL WOUND WITH CAF
7	BONNET	1	ASTM A 216 GR. WCB / ASTM A351 GR.CF8 / CF8M / CF3M
8	BONNET BUSH		S.S. AISI 410 / SS304 / SS316 / SS316L
9	BONNET STUD NUT	AS REQD	ASTM A 194 Gr. 2H
10	BONNET STUD	AS REQD	ASTM A 193 Gr. B7
11	CROSS BOLT & NUT	2	CARBON STEEL
12	GLAND PACKING	7	GRAPHOIL RINGS
13	GLAND	1	S.S. AISI 410 / SS304 / SS316 / SS316L
14	GLAND FLANGE	1	CARBON STEEL
15	EYE BOLT & NUT	2	CARBON STEEL
16	YOKE NUT	1	Ni-RESIST / S.G. IRON
17	HANDWHEEL	1	CAST MALLEABLE IRON / SGI GR. 400/18 / GGG50
18	WASHER	1	CARBON STEEL
19	HANDWHEEL NUT	1	CARBON STEEL

CLASS 150
SIZE ‘NB’	‘A’	‘D’	‘T’	‘RF’	‘L’
½”/15	108	89	11.1	35	1.6
¾”/20	118	98.5	11.1	43	1.6
1″/25	127	108	11.1	51	1.6
1¼”/32	140	117.5	12.7	63.5	1.6
1½”/40	165	127	14.3	73	1.6
2″/50	203	152.5	16	92	1.6
2½”/65	216	178	17.5	105	1.6
3″/80	241.5	190.5	19	127	1.6
4″/100	292	229	24	157	1.6
5″/125	356	254	24	186	1.6
6″/150	406.5	279.5	24	216	1.6
8″/200	495.5	343	24	270	1.6
10″/250	622.5	406.5	24	324	1.6
12”/300	698.5	483	24	381	1.6
14″/350	787.5	533.5	24	413	1.6
16″/400	914.5	597	24	470	1.6
18″/450	978	635	24	534	1.6
20″/500	978	698.5	24	584	1.6

CLASS 300
‘A’	‘D’	‘T’	‘RF’	‘L’
—	—	—	—	—
—	—	—	—	—
203	124	17.5	51	1.6
216	133.5	19	63.5	1.6
229	156	21	73	1.6
267	165	22.2	92	1.6
292	190.5	25.4	105	1.6
317.5	210	28.6	127	1.6
356	254	32	157	1.6
400	279.5	35	186	1.6
444.5	317.5	36.5	216	1.6
559	381	41.5	270	1.6
622.5	444.5	48	324	1.6
711.5	521	51	381	1.6
—	—	—	—	—
—	—	—	—	—
—	—	—	—	—
—	—	—	—	—

CLASS 600
SIZE ‘NB	‘A	‘D	‘T	‘RF	‘L
½”/15	—	—	—	—	—
¾”/20	—	—	—	—	—
1″/25	216	124	24	51	6.4
1¼”/32	229	133.5	27	63.5	6.4
1½”/40	241.5	156	28.6	73	6.4
2″/50	292	165	32	92	6.4
2½”/65	330	190.5	35	105	6.4
3″/80	356	210	38	127	6.4
4″/100	432	273	44.5	157	6.4
5″/125	508	330.5	51	186	6.4
6″/150	559	356	54	216	6.4
8″/200	660.5	419	62	270	6.4
10″/250	787.5	508	70	324	6.4
12”/300	—	—	—	—	—
14″/350	—	—	—	—	—
16″/400	—	—	—	—	—
18″/450	—	—	—	—	—
20″/500	—	—	—	—	—

TEST PRESSURE
CLASS	HYDROSTATIC		AIR
	BODY	SEAT & BACKSEAT	SEAT
150	32 Kg/cm2	22 Kg/cm2	7 Kg/cm2
300	76 Kg/cm2	55 Kg/cm2	7 Kg/cm2
600	150 Kg/cm2	110 Kg/cm2	7 Kg/cm2

DESIGN FEATURES :

• MANUFACTURING STANDARDS BS : 1873/ANSI B 16.34
• FACE TO FACE AS PER ANSI B 16.10
• ENDS FLANGED & DRILLED AS PER ANSI B 16.5 RF.
• TESTING AS PER BS : 5146

• AVAILABLE IN CLASS 900 & 1500
• AVAILABLE WITH ACTUATOR OPERATOR
• AVAILABLE WITH EXTENSION STEM
• AVAILABLE IN SS-304 / SS-316

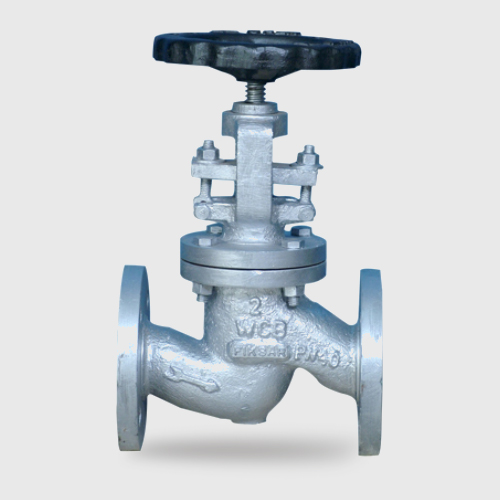

GLOBE VALVE,FLANGED END, ND 16 / ND 40

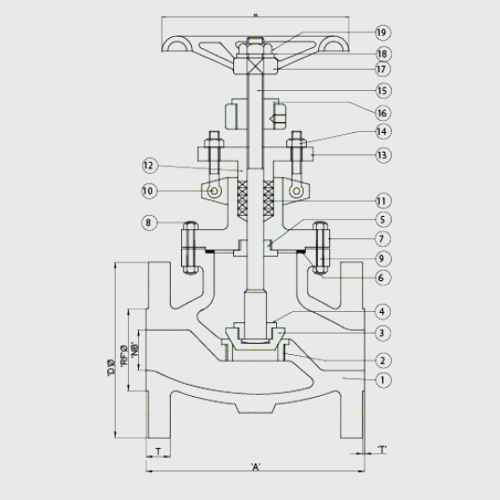

SR. NO.	PART NAME	QTY	MATERIAL
1	BODY	1	ASTM A 216 GR. WCB / ASTM A351 GR.CF8 / CF8M / CF3M
2	SEATRING	2	SS410 / SS304 / SS316 / SS316L
3	DISC	1	SS410 / SS304 / SS316 / SS316L
4	SPINDLE NUT	1	SS410 / SS304 / SS316 / SS316L
5	BONNET BUSH	1	S.S. AISI 410
6	GASKET	1	SS SPIRAL WOUNDED
7	BONNET	1	ASTM A 216 GR. WCB / ASTM A351 GR.CF8 / CF8M / CF3M
8	BONNET STUD NUT	AS REQD.	ASTM A 194 GR. 2H
9	BONNET STUD	AS REQD.	ASTM A 193 GR. B7
10	CROSS BOLT & NUT	2	CARBON STEEL
11	GLAND PACKING	7	GRAPHOIL RINGS
12	GLAND	1	SS AISI 410 / SS304 / SS316 / SS316L
13	GLAND FLANGE	1	CARBON STEEL
14	EYE BOLT & NUT	2	CARBON STEEL
15	SPINDLE	1	SS AISI 410 / SS304 / SS316 / SS316L
16	YOKE NUT	1	NI-RESIST / S.G. IRON
17	HANDWHEEL	1	CAST MALLEABLE IRON / SGI GR. 400/18 / GGG50
18	WASHER	1	CARBON STEEL
19	HANDWHEEL NUT	1	CARBON STEEL

PN 16
SIZE’NB’	‘A’	‘D’	‘T’	‘RF’	‘L’
1/2″ / 15	130	95	14	45	02
3/4″ / 20	150	105	16	58	02
1″ / 25	160	115	16	68	02
11/4″ / 32	180	140	16	78	02
11/2″ / 40	200	150	16	88	03
2″ / 50	230	165	18	102	03
21/2″ / 65	290	185	18	122	03
3″ / 80	310	200	20	138	03
4″ / 100	350	220	20	158	03
5″ / 125	400	250	22	185	03
6″ / 150	480	285	22	212	03
8″ / 200	600	340	24	268	03
10″ / 250	730	405	26	320	03
12″ / 300	850	460	28	378	04

PN 40
SIZE’NB’	‘A’	‘D’	‘T’	‘RF’	‘L’
1/2″ / 15	130	95	14	45	02
3/4″ / 20	150	105	16	58	02
1″ / 25	160	115	18	68	02
11/4″ / 32	180	140	18	78	02
11/2″ / 40	200	150	18	88	03
2″ / 50	230	165	20	102	03
21/2″ / 65	290	185	22	122	03
3″ / 80	310	200	24	138	03
4″ / 100	350	235	24	162	03
5″ / 125	400	270	26	188	03
6″ / 150	480	300	28	218	03
8″ / 200	600	375	34	285	03
10″ / 250	730	470	38	345	03
12″ / 300	850	515	42	410	04

TEST PRESSURE
CLASS	HYDROSTATIC		AIR
	BODY	SEAT & BACKSEAT	SEAT
PN 16	24 kg/cm2	16 kg/cm2	07 kg/cm2
PN 40	60 kg/cm2	40 kg/cm2	07 kg/cm2

• MANUFACTURING STANDARDS : DIN 3230
• FACE TO FACE AS PER DIN 3202
• TESTED AS PER DIN 3230
• AVAILABLE IN SS-304 / SS-316 / ALLOY 20 / FS
